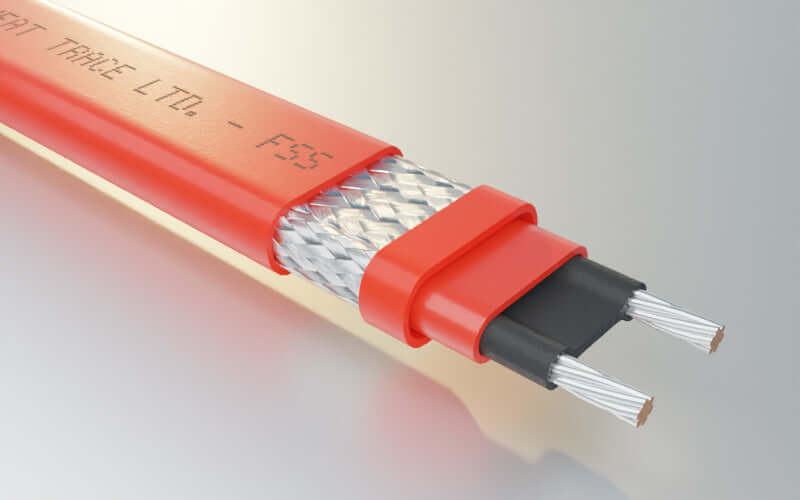

  • FailSafe Super cable

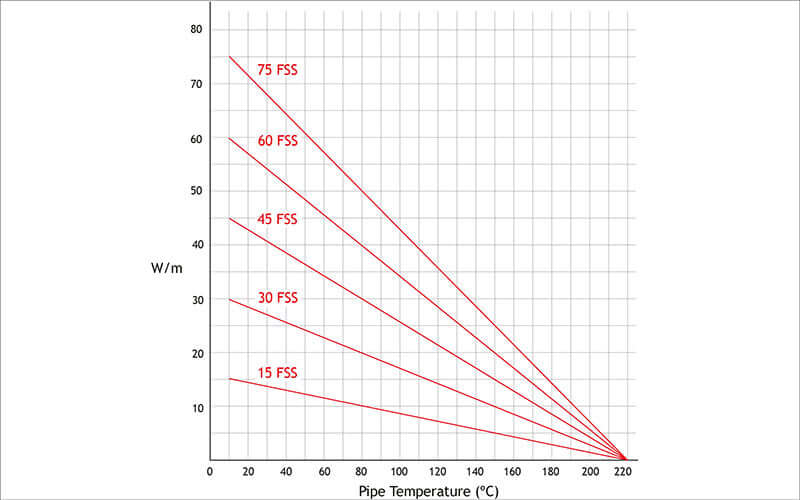

  • FailSafe super graph
  • Certificates
1 3

FailSafe Super - CLEARANCE

SKU 15FSS2-CF-15

£237.06 GBP
£0.00 GBP £237.06 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.
Wattage
Length (m)
Fluoropolymer outer jacket for greater corrosion resistance. 225ºC maximum continuous exposure temperature (power on)
FailSafe Super - CLEARANCE

Example of Applications

Freeze protection of pipework and vessels
Process temperature maintenance

Benefits

Can be cut to length
Output self-regulates in response to pipe temperature
High outputs to 75W/m at 10°C

Minimum Operating Temperature -40ºC
Maximum Exposure Temperature 225ºC
Voltage 230
Cable Output W/m 75
Temperature Control Range 10-40

If you require a custom length of cable, please get in touch

FailSafe Super is an industrial grade self-regulating heating cable that can be used for freeze protection or temperature maintenance of pipework and vessels up to 225°C. It can be cut-to-length at site to match exact piping lengths without any complicated design considerations.

FailSafe Super is approved for use in non-hazardous, and hazardous areas to world wide standards. Its self-regulating characteristics improve safety and reliability.

FailSafe Super will not overheat or burnout, even when overlapped upon itself. Its power output self-regulates in response to the pipe temperature.

FailSafe Super is available with a corrosion resistant fluoropolymer outer jacket (FSS-CF).

The installation of FailSafe Super is quick and simple and requires no special skills or tools. Termination, splicing and power connection components are all provided in convenient kits.

If you would like to request a certificate please contact us, please choose Certification from the drop down list.
